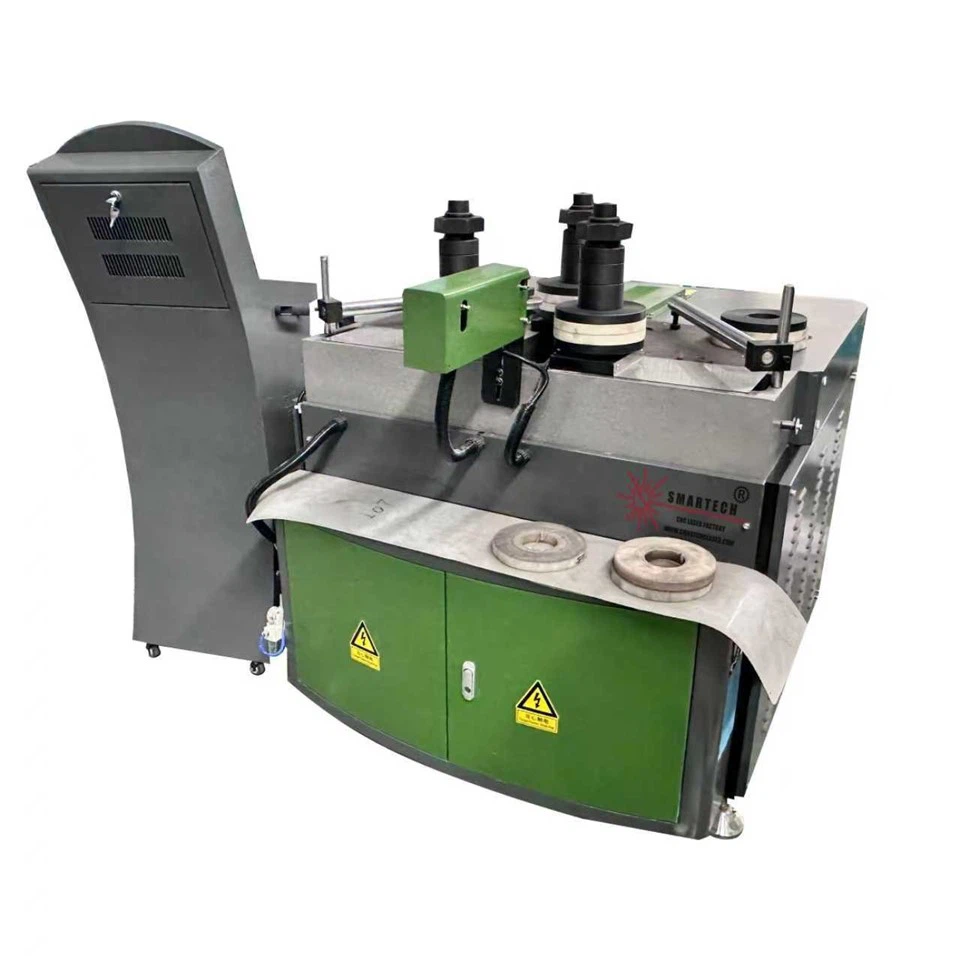

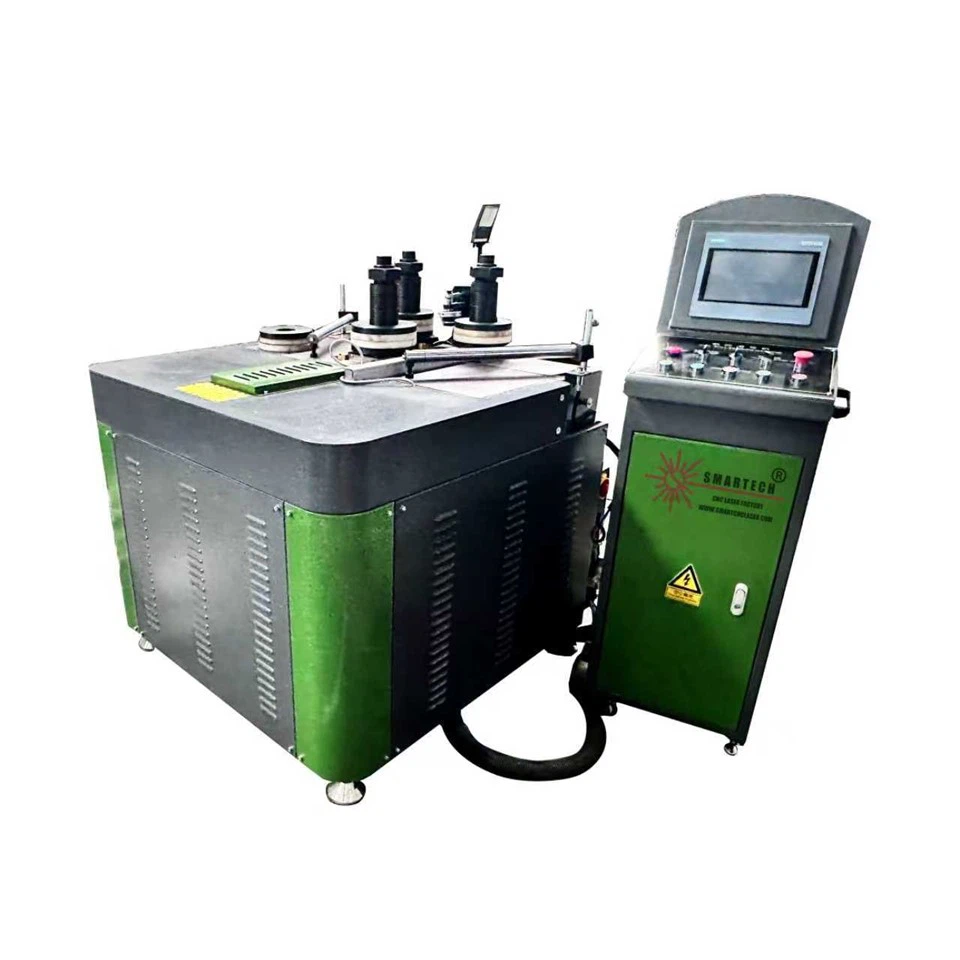

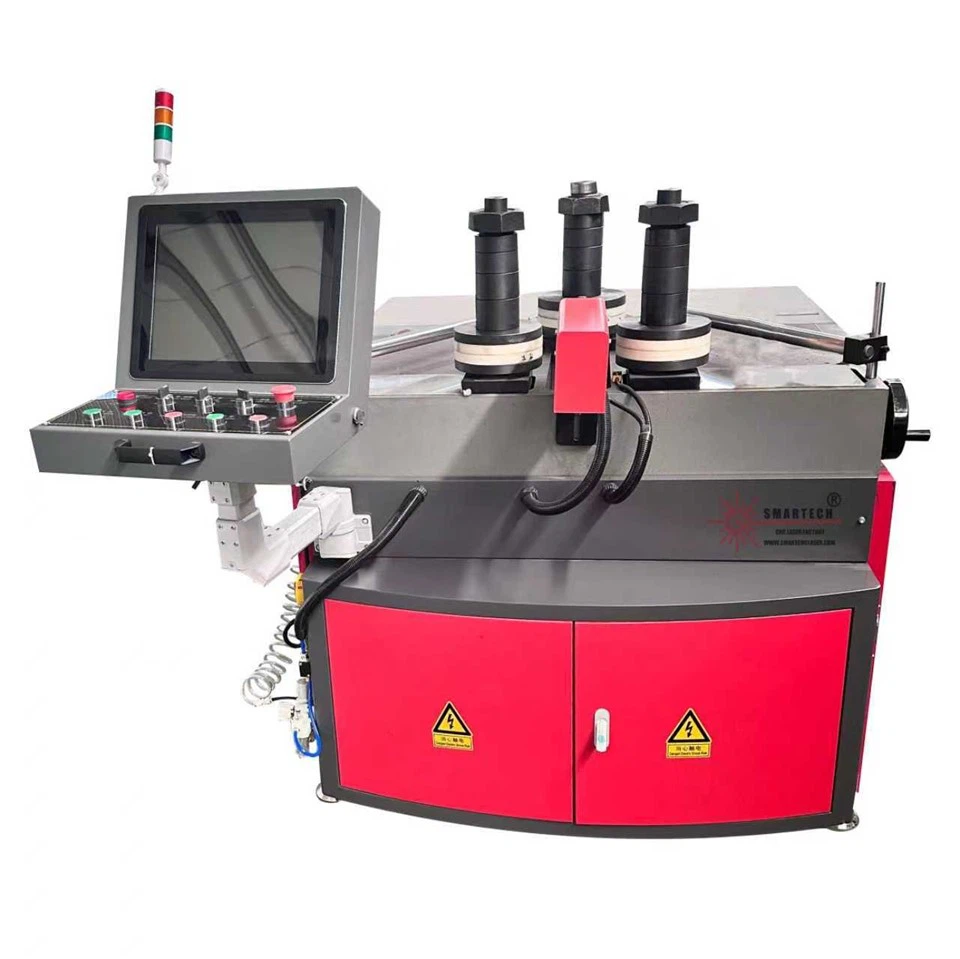

CNC Roll Bending Machine

CNC roll Bending machine

Equipment Advantages:

This CNC roll bending machine is suitable for the arc bending processing of various metal profiles and irregular profiles, including aluminum alloy door and window profiles as well as thermal insulation broken bridge profiles. Adopting a fully automatic CNC system and dedicated arc bending software, it features simple and convenient operation.

With high structural strength, reliable mechanical toughness and rigidity, the machine can run stably and reliably even under various complex working conditions. It is capable of system compensation based on the rebound data of profiles, thus ensuring superior machining accuracy. The CNC hydraulic control system guarantees precise positioning during operation, and its overall product performance complies with the advanced European standards for CNC arc bending machines.

This equipment has a total power of 15KW and adopts a three-phase four-wire AC380V, 50HZ power supply. It is equipped with a roll shaft of 400mm length, whose roll mold has a maximum diameter of 280mm (nylon material) and roll diameter of 15mm (customizable, 40 chromium with heat treatment processing); the fixed shaft center distance is adjustable within 350-750mm, and the roll speed ranges from 0 to 15 revolutions per minute. The Y-axis cylinder thrust is available in 20/30/40 tons, with a feed stroke of 0-22mm, positioning accuracy of ±0.1mm and repeat positioning accuracy of ±0.1mm, while the X-axis has a maximum torque of 9000 N.m (3000 N. m3)and positioning accuracy of less than 0.5mm. It supports one-time bending molding of profiles with a maximum size of 400mm200mm and a minimum inner arc processing radius of 100mm (depending on the actual material size). The main machine dimensions are 184013601350mm, the operating console dimensions are 5005101500mm, and the total weight is 2500kg

Servo Motor &drivers(higher precision and more stable)

Industrial Touching Screen Controller(professional and easy to operate)

Electricity Control Box with famous brands parts:
