Aluminum Door And Window Frames CNC Cutting Saw
Description
Technical Parameters

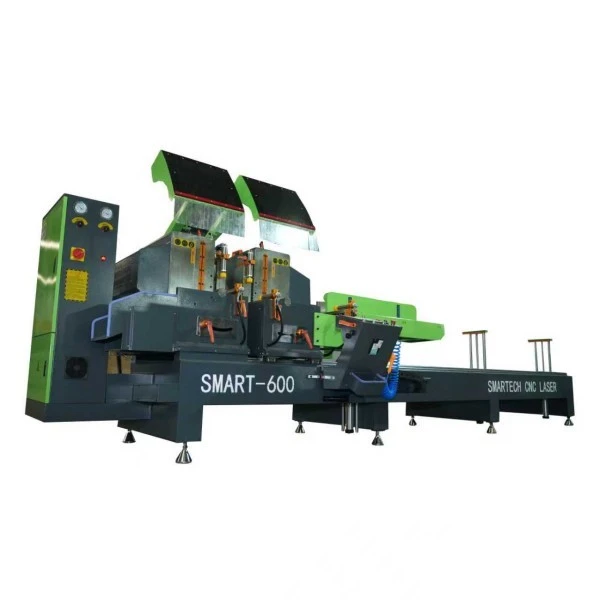

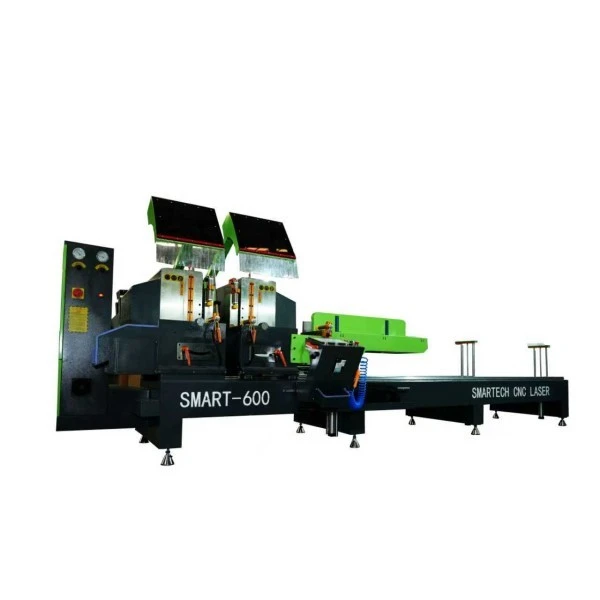

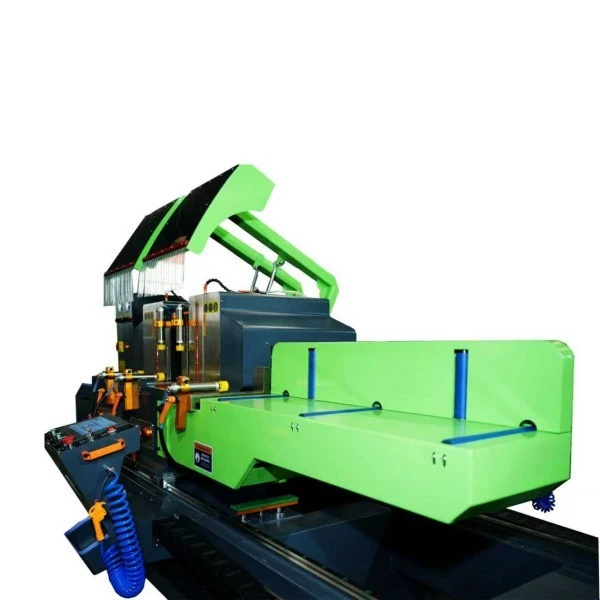

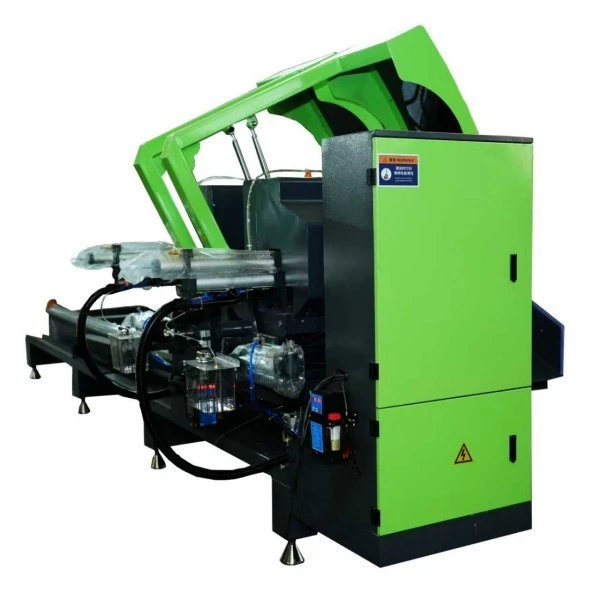

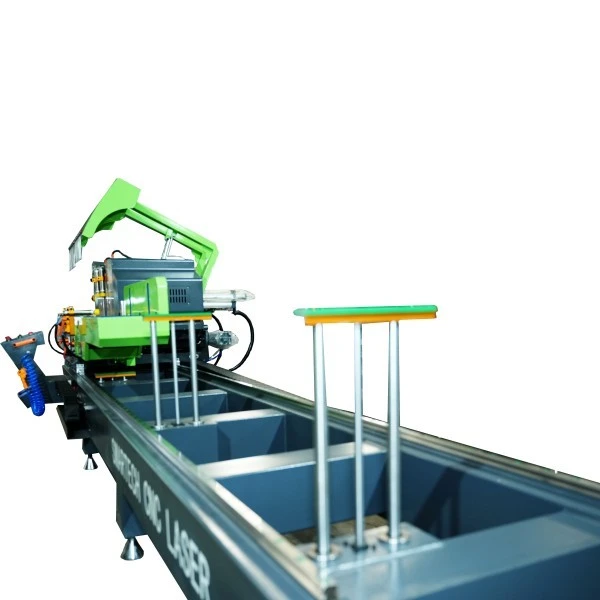

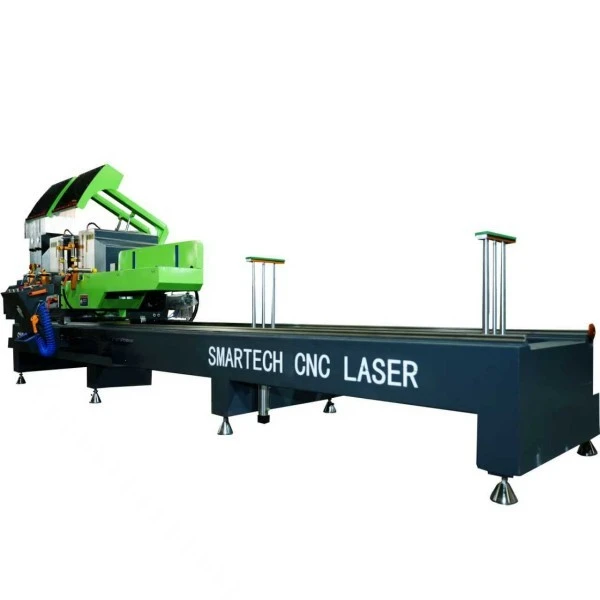

Aluminum Door & Window Frames CNC Cutting Saw
This CNC cutting saw for aluminum door and window frames uses a Reasea-BK-GL070 CNC system, servo motor driver, Kinco touch screen, and Leadshine programmable logic controller. It features a GTW spindle (3000 RPM) and a 600mm diameter saw blade, supports 45°/90° sawing angles, operates at 0.5-0.8 MPa, and can cut lengths up to 400-4200mm. The equipment uses Delixi electrical components, and its overall dimensions are 5900*1600*1700mm. It is reliable and well-suited to the processing needs of aluminum door and window frames.
|
Configuration |
Brand |
Technical Parameters |
Specification |
|
cnc system |
Rea Sea-BK-GL070 |
Power supply |
380V/50HZ |
|
Motor |
DongLing |
Input power |
6.0KW |
|
Driver |
Dong Ling |
Working pressure |
0.5-0.8Mpa |
|
Touch screen |
seven inch kinco |
Saw blade specifications |
Dia. 600mm |
|
PLC |
Leadshine |
Saw length |
400-4200mm |
|
Spindle |
GTW |
Spindle speed |
3000RPM |
|
Electrical components |
Delixi |
Saw angle |
45°/ 90° |
|
Cylinder |
Baidi |
Sawing height |
45°190mm/ 90°250mm |
|
Dimensions |
5900*1600*1700mm |
Sawing width |
175mm |
Technical data
Machine Outline
Highly flexible shielded chain
Auto Lubrication System
pressure gauge
