Multi Spindle Stone CNC Router

A Multi-Spindle Stone CNC Router is an advanced computer-controlled machine designed for cutting, carving, engraving, and shaping stone materials (such as marble, granite, quartz, limestone, etc.) with high precision and efficiency. The "multi-spindle" feature allows multiple cutting tools to work simultaneously, significantly improving productivity compared to single-spindle machines.

1. Superior high power watercooling spindle could keep working at low noise level, safeguarding stability for long-time operation.

2. Breakpoint memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.

3. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, UCANCAM, etc.

Key Features of a Multi-Spindle Stone CNC Router:

Multiple Spindles (2, 4, 6, or more)

Enables parallel processing of multiple workpieces or different operations (cutting, drilling, engraving) at the same time.

Reduces machining time for large-scale production.

High-Power Spindles (5.5kW - 15kW or higher)

Equipped with robust spindles (water-cooled or air-cooled) to handle hard stone materials.

Variable speed control for different stone types and tool requirements.

CNC Precision & Automation

Uses servo motors or stepper motors for high-accuracy positioning (repeatability up to ±0.02mm).

Operates via G-code programming (compatible with CAD/CAM software like AutoCAD, ArtCAM, Type3).

Strong Machine Structure

Heavy-duty gantry and frame (steel or cast iron) to minimize vibration and ensure stability.

Reinforced guide rails (linear or square guides) for durability.

Dust & Water Cooling System

Built-in water cooling to prevent tool overheating and suppress stone dust.

Optional dust extraction systems for cleaner operation.

Large Working Area

Customizable bed sizes (e.g., 1300×2500mm, 2000×3000mm, or larger).

Vacuum table or mechanical clamping to secure stone slabs.

Tool Changer (Optional)

Automatic tool changer (ATC) for switching between different bits without manual intervention.

Applications:

Stone engraving (3D reliefs, lettering, decorative patterns).

Countertop cutting (kitchen tops, vanity units).

Tombstones, monuments, and architectural elements.

Tile and mosaic processing.

4. CNC controller enables easy and convenient operation, which makes end users to be familiar with the operation of the machine quickly.

Advantages

High Efficiency: Multiple spindles minimize idle time, boosting output.

Superior Precision: CNC technology ensures consistent, complex designs.

Versatility: Compatible with various bits for cutting, milling, and polishing.

Automation: Reduces labor costs and human error.

Machine spindle with coolant





Z axis rails and ball screw

Tool Sensor

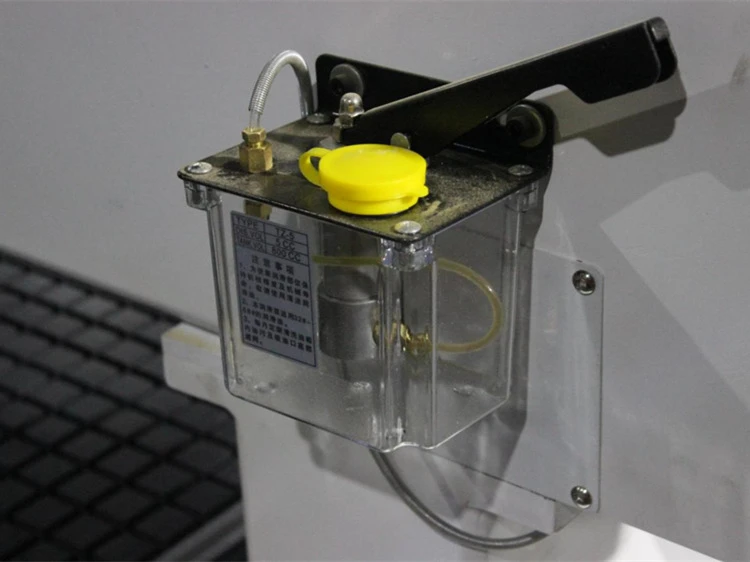

Oil Lubricating System

Helical rack pinion High Precision 2M
