1325 Stone CNC Router
$5500.00 | 1 table (Min.Order)
, Adanced plc control system
Best inverter (best in China)
Original Lead Shine Stepper motor and drivers Yako 2811 MA
Description
Technical Parameters
Product Introduction
Working are:1300x2500mm
Heavy duty steel tube frame(could load 10 tons materials,10 years guarantee without deformation)
Original HONTI Rails imported from Taiwan.
Helical rack pinion gear transmission(more stable)
T-slot table
water tank with door (holding water after tools cooling)
Auto Tools sensor
Adanced plc control system
Best inverter (best in China)
Original Lead Shine Stepper motor and drivers Yako 2811 MA
5.5 KW Water-cooling especial spindle for hard materials
Water chiller for better cooling efficiency
including Ucancam original Software
Limit switches for all x,y,z axis
3 pieces cooling sprayers
Mist cooling system
Whole set tools
Used for Aluminium,granite,marble,glass,wood,foam etc
The 1325 Stone CNC Router is a heavy-duty CNC machining center specifically designed for cutting, carving, and engraving stone materials. With a 1300×2500mm (51"×98") work area, it handles large stone slabs for architectural, artistic, and industrial applications.
🔹 Key Specifications
Working Area: 1300×2500×200mm (X/Y/Z)
Max Stone Thickness: 150mm (standard), 300mm (custom)
Positioning Accuracy: ±0.05mm
Repeatability: ±0.03mm
Spindle Power: 7.5kW-15kW (water-cooled)
Spindle Speed: 6000-24000 RPM (variable)
Control System: DSP, Syntec, or Siemens
🔹 Specialized Stone Cutting Features
Diamond Tool Compatibility
Uses diamond-impregnated tools for hard stone processing
Automatic tool recognition system
Water Management System
High-pressure coolant pump (7.5bar)
200L water tank with filtration
Splash-proof enclosure
Heavy-Duty Construction
Reinforced steel frame (8-12mm thickness)
Double linear guides on X/Y axes
50mm ball screws
Dust Extraction
Industrial vacuum system (3000W)
Water curtain dust suppression option
🔹 Common Applications
Architectural Elements: Countertops, columns, wall panels
Monumental Work: Tombstones, memorials, statues
Decorative Items: Fireplaces, fountains, art pieces
Construction Components: Floor inlays, stair treads
Signage: 3D lettering, corporate logos
🔹 Tooling Options
Diamond Profile Wheels (for edge shaping)
PCD Engraving Bits (for fine details)
Segment Cutters (for deep granite cutting)
Drilling Tools (for holes and water jets)
Polishing Heads (for finishing)
🔹 Software Requirements
Design: ArtCAM, Type3, AutoCAD
CAM: Stone-specific nesting software
Control: Specialized stone processing firmware
The application Of SS 1325 CNC Router Machine
Production details

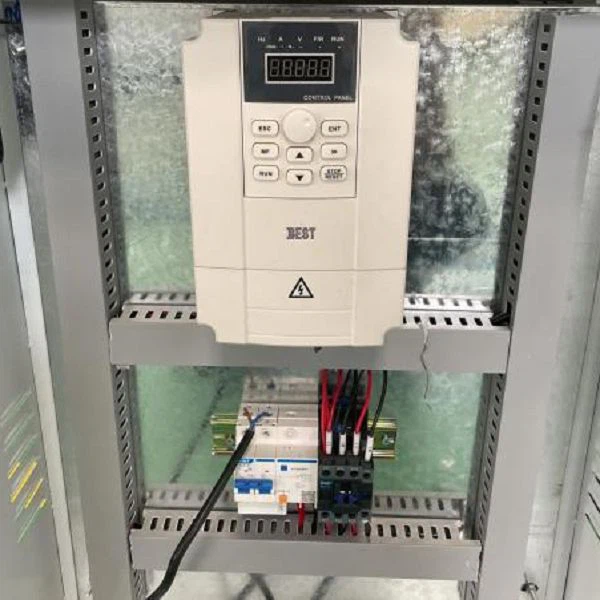

Control Cabinet
Machine spindle with coolant
Oil Lubricating system
Limit Switches for each axis
Z axis rails and ball screw
Mist Cooling System
Best Inverter
DSP controller
Mach3 Controller
NC studio controller
Our Service:
Why choose us?
FAQ:
Q: What is the payment terms?
A: Western Union,Cash,T/T
Q: How long is the delivery date?(After getting the deposit)
A: Delivery time is 5-7 working days for standard machine models,please confirm with us before payment
Q: How about the shipping ways?
A: By sea or by air
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95%
customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Packing & Shipping:
Hot Tags: 1325 stone CNC router, China 1325 stone CNC router manufacturers, suppliers, 1325 Stone CNC Router, Multi Spindle Stone CNC Router, Stone Marble CNC Router, Granite Stone CNC Router, stone cnc router, Stone Engraving CNC Router
Product specification
|
Description |
Parameter |
|
X,Y,Z Working Area |
1300x2500x250mm |
|
Table Size |
2050×3500mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
|
Lathe Structure |
Steel Structure |
|
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
|
Z Structure |
Ball Screw, Shaft Linear Bearings |
|
Max. Consume power |
11 Kw |
|
Max. Speed |
0-32000mm/min |
|
Max. Working Speed |
0-20000mm/min |
|
Spindle Power Motor |
5.5 KW water-cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Working Mode |
Stepper |
|
Working Voltage |
AC220V/50/60Hz,1PH /AC380V/50HZ,3 PH |
|
Command |
G Code, *uoo, *mmg, *plt |
|
Operating System |
DSP(Digital signal processing) /Mach3/Nc studio |
|
Interface |
USB |
|
Flash Memory |
512M |
|
Collet |
ER25 |
|
X,Y Working Delicacy |
<0.01mm |
|
Software |
Artcam/Ucancam/JD paint software |
|
Running circumstance |
Temperature: 0℃～45℃Relative humidity: 30%～75% |
|
Packing Size |
Integrated: 3700X2250X1870mm |
|
Net Weight |
2500KG |
|
Gross Weight |
2800KG |
