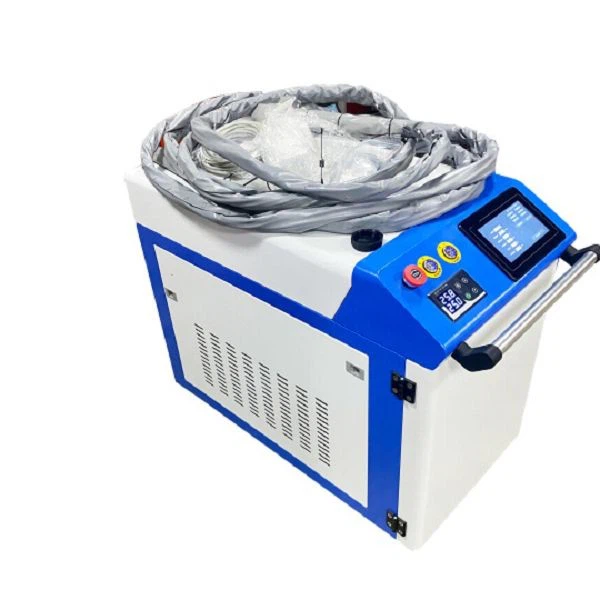

3 in 1 Laser Welding Machine





A 3-in-1 Laser Welding Machine integrates three primary laser-based processes into a single system, typically laser welding, laser cleaning, and laser cutting. This multifunctional approach enhances efficiency, reduces costs, and saves space in industrial settings. Below is a detailed breakdown:





Core Components & Functions

Laser Welding



Joins materials using a high-intensity laser beam, ideal for precision tasks in industries like automotive and aerospace.

Advantages: Minimal heat distortion, high-speed, and strong welds on metals (steel, aluminum, titanium).

Laser Cleaning



Removes rust, oxides, paint, or contaminants via laser ablation, preparing surfaces for welding or coating.

Benefits: Non-abrasive, eco-friendly (no chemicals), and preserves substrate integrity.

Laser Cutting



Cuts materials with high accuracy using focused laser beams, suitable for intricate designs in sheet metal fabrication.

Applications: Electronics, medical devices, and jewelry.



Key Features

Modular Design: Switches between functions via adjustable settings or interchangeable modules.



Versatile Laser Source: Fiber lasers (common) with adjustable power (500W–6kW), pulse duration, and spot size.



Control Systems: CNC or galvanometer scanners for beam steering, often paired with user-friendly software.



Automation Compatibility: Integrates with robotic arms or Industry 4.0 systems for automated production lines.



Advantages



Cost Efficiency: Eliminates need for separate machines.



Space-Saving: Compact footprint for smaller workshops.



Flexibility: Adaptable to diverse tasks (e.g., weld, clean, cut in a single workflow).



Precision: High accuracy (±0.1mm) for complex geometries.



Applications

Industries: Automotive, aerospace, electronics, tool repair, and jewelry.



Use Cases:

Weld battery tabs, clean engine parts, and cut metal brackets in one setup.

Restore molds (clean oxide layers, weld defects, trim edges).



---

Safety & Maintenance

Safety: Enclosures, protective eyewear, fume extractors.

Maintenance: Regular checks on optics, cooling systems, and calibration.



---

Purchasing Considerations

Material Compatibility: Ensure the machine handles required thicknesses (e.g., 0.1–20mm for metals).

Throughput: Match laser power and speed to production volume.

Software: Look for intuitive interfaces and real-time monitoring.



---

Example Models

Brands: Trumpf, IPG Photonics, Han's Laser.

Specs: 1kW fiber laser, 1064nm wavelength, CNC control, robotic integration.



---

Summary: A 3-in-1 laser welding machine is a versatile solution for industries needing multi-process capabilities. By combining welding, cleaning, and cutting, it streamlines workflows while maintaining precision and efficiency. Proper training and safety protocols are essential to maximize its potential.





Performance characteristics

●Adapt to welding of various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials;

 ●The light can be emitted continuously or pulsed, not only for thermal conductivity welding, but also for continuous deep penetration welding. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, etc.

●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours;

●Fast processing speed;

●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials);

●It can process parts with complex shapes and small parts, and can also be processed in vacuum;

●and Robotic arm and other automated institutions Combined, the processing can be automated;

●Can realize filler wire welding,Due to advanced processimethods, existproduct structures and materials can be improved.





Features of laser welding head:

 @1.The internal design is smart, and the good interactive control system expands the tolerance range of the processed parts and the width of the weld seam, solves the disadvantage of small light spot, and makes the weld seam better.

@2.Lightweight, using body engineering design method, comfortable grip; easy control with one hand,

@3.simple operation,Easy to use.

@4.With multiple safety alarms, the light will be automatically locked after the work piece is removed, which is highly safe.

@5.Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing,Consumables few.

@6.Various angle nozzles can be configured to meet the welding needs of different products.

@7.technical parameter: Interface type: QBH Laser incident method: coaxial Laser power:2000W Laser wavelength range: 1080±20 Collimation focal length: 50mm Focusing focal length: 80mm/120mm Shielding gas: coaxial Weight: 1.1kg Adjustable amplitude width: 0-6mm
