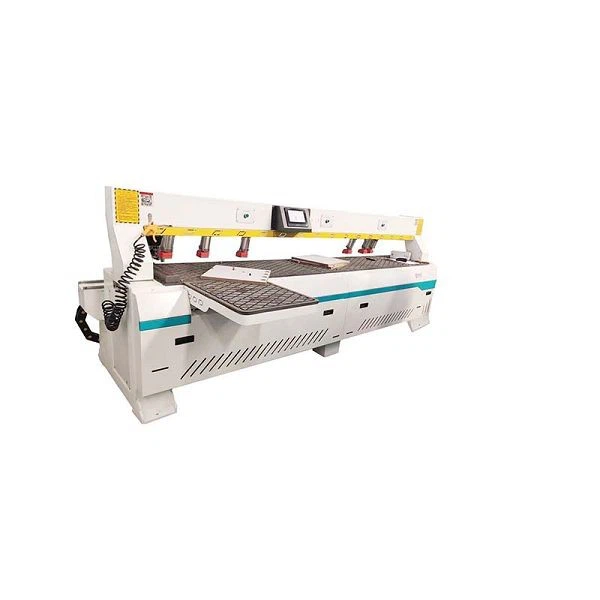

Vertical CNC Drilling Machine

Movable beam positioning

• Y axis travel size: 150mm
• X axis travel size: 2800mm
• Minimum work piece length and width: 100*50mm



4.5 KW x 2 sets for Horizontal drilling head + 2.2KW x 2 Vertical Drilling Head

5.5 KW Inverter



Touch win controller (touching panel)



Automatic positioning



American original Banner Laser displacement sensor



Servo motor driver 750W*3 pieces

Y movement: Rack and pinion, gear drive/Taiwan



Z movement: Pneumatic cylinder



Dedicated positioning device



Oil lubrication system





A Vertical CNC Drilling Machine is a computer-controlled machining tool designed for high-precision drilling operations. The spindle is oriented vertically, allowing the workpiece to be positioned on a stable table beneath the tool. CNC (Computer Numerical Control) technology enables automated, repeatable, and accurate drilling with minimal manual intervention.



An All-in-One Side Punch Vertical Drilling Machine is a specialized CNC system designed for high-efficiency, multi-operation processing of door and window components, particularly for lock and hinge preparations. It combines side punching (for latch/handle holes) and vertical drilling (for bolt/screw holes) in a single machine, streamlining production.



Key Features

Dual-Function Design



Side Punching Unit: Hydraulic or pneumatic punching mechanism for creating rectangular or irregular holes (e.g., latch plates, handle slots).

Vertical Drilling Unit: Multi-spindle drilling heads for simultaneous boreholes (e.g., lock cylinders, hinge screws).



CNC Automation



Programmable logic controls (PLC) for precise positioning of punches and drills.

Touchscreen interface with pre-set templates for common door/window lock configurations.



Adjustability & Flexibility

Modular tooling adapts to different door thicknesses (e.g., 35–60 mm) and materials (wood, aluminum, PVC).

Quick-change fixtures for switching between job types.



Efficiency Enhancements

Single-pass processing reduces handling time.

Servo motors ensure high-speed, repeatable operations.



Applications

• Door Manufacturing: Prepares lock mortises, hinge recesses, and latch holes in one setup.
• Window Frames: Drilling for hardware (handles, espagnolette locks).
• Custom Fabrication: Adaptable to niche designs (e.g., multi-point locking systems).





Side horizontal and vertical holes drilling For Cabinet Furniture/Doors.



Advantages:



High Precision & Repeatability – CNC programming ensures consistent hole positioning.



Automated Operations – Reduces manual labor and increases productivity.



Multi-Function Capability – Can perform milling, boring, and tapping with the right tooling.



Flexibility – Ideal for both small batches and large-scale production.





• The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs.
• Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments.
• Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting.





3 In 1, blind hole mode, slotting mode, combination graphics, invisible handle, straightener, hinge drill, support code scanning function
