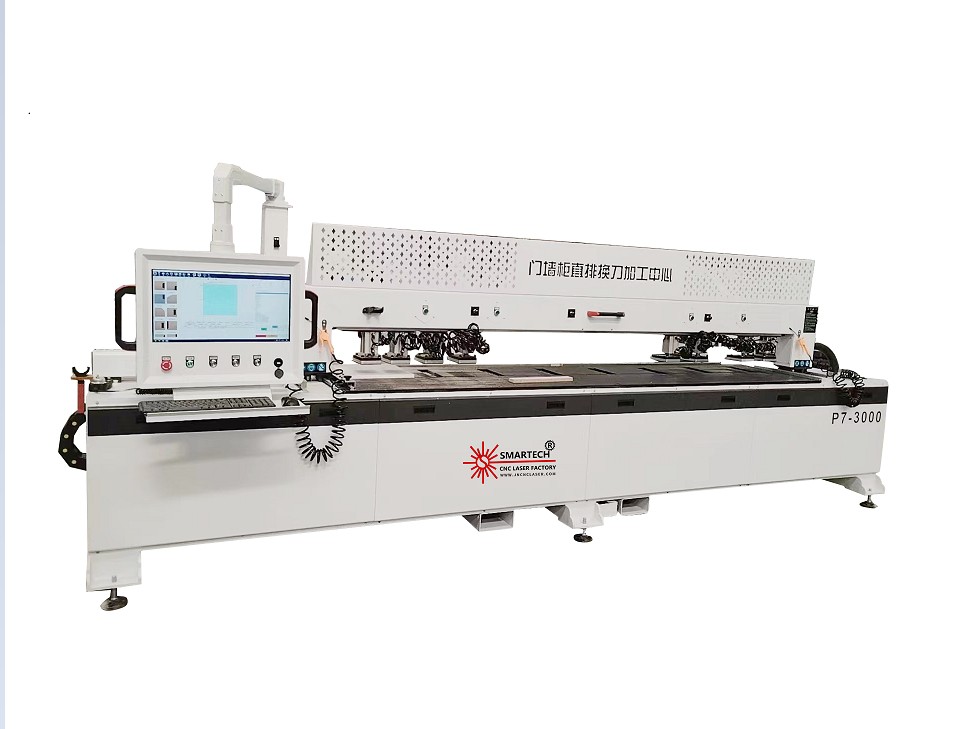

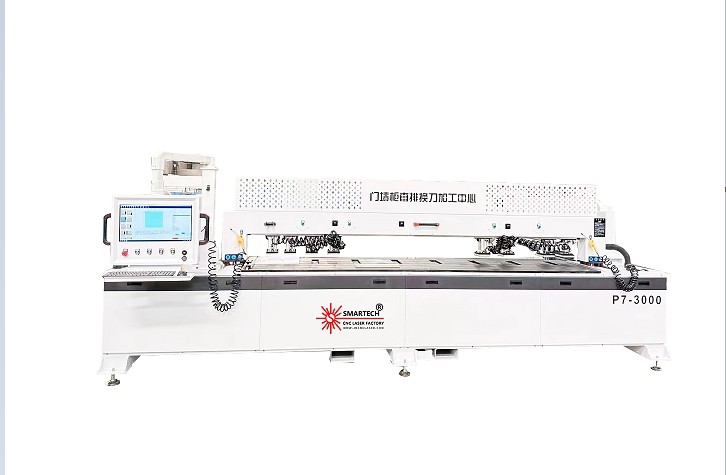

ATC CNC Machine For Doors Cabinets
$10500.00 | 1 table (Min.Order)
Description
Technical Parameters
ATC CNC Machine for Doors Cabinets
Functions:
Door lock holes, hinges, hinge holes, handles, laser scanning, three-in-one, various invisible parts, straighteners, light strip slots, special-shaped handles, lamino, begonia corners, skeleton lines and other processes, graphic import, software code processing, support for various formats of files, support networking, docking with various software
Features
1.This professional machine is used for horizontal perforated plate furniture,Completely replace the traditional drill,get rid ofthe traditional punching mode.Improve working efficiency greatly.
2.High quality parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer;
3.Reasonable design: independent computer control, operation and maintenance more convenient.
4.Perfect automatic oil lubrication system, prolong the service life of the machine.
5.Advanced control system,more intelligent and easy to operate
6.Automatic tools changer could meet whole production process from beginning to end without stop
7.Used for high level High-quality furniture
| System | Delta General Control |
| Inverter | 11KW-1 Piece,7.5KW-1 Piece,2.2KW-2 Pieces |
| Servo motor | Delta 1KW-3Pieces |
| Laser Head | USA Banner |
| Spindle | 9 KW HQD ATC- 1 Piece |
| 2.2KW Hinge Motor- 1 Piece | |
| 2.2KW Lamello Spindle- 1 Piece | |
| 800W Holes Drilling Spindle-1 Piece | |
| 6.0KW Air Cooling Spindle-1 Piece | |
| 4.5KW Air Cooling Spindle-1 Piece | |
| Total Power | 28KW |
| Reducer | Shimpo |
| Lubricating Mode | Oil Lubricating System |
| Beam | Can move back & forward |
| Pressing method | Beam Press(For big size material) |
| Special press(For thin materials) | |
| Rail | X Axis 25,Y Axis 30,Z Axis 30 |
| Transmission | Y Axis High precision 2M Rack Pinion |
| Z Axis,X Axis：Ball Screw Transmission | |
| Voltage | 380V |
| Tools Holder | 8 Pieces tools holer |
| Travel size | Y Axis -3000 |
| X Axis -200 | |
| Z Axis -160 | |
| Machine size | 4800*2160*1800 |
| Machine weight | 1.6T |
| Functions | Door lock holes, hinges, hinge holes, handles, laser scanning, three-in-one, various invisible parts, straighteners, light strip slots, special-shaped handles, lamino, begonia corners, skeleton lines and other processes, graphic import, software code processing, support for various formats of files, support networking, docking with various software |
CNC New Technology
English Software
Tool Sensor
Lubricating system
Foot pedal

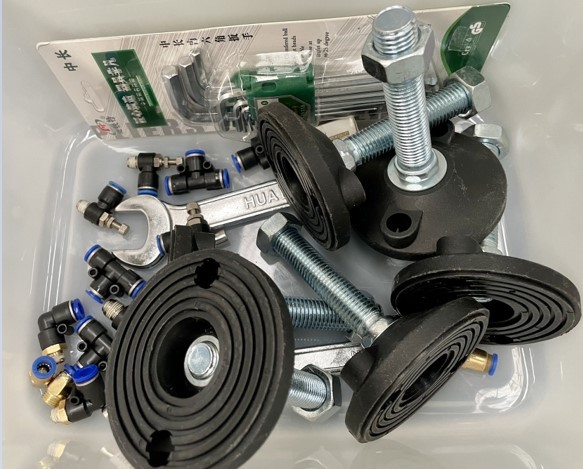

Levelling feet
Door Lock holes making

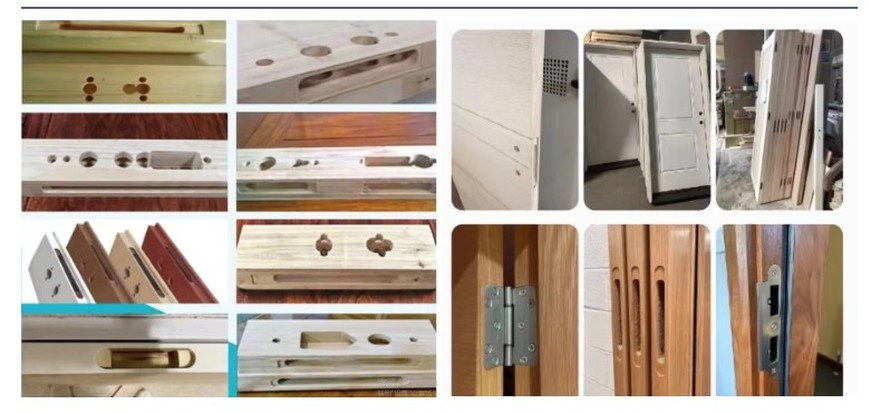

Sample
