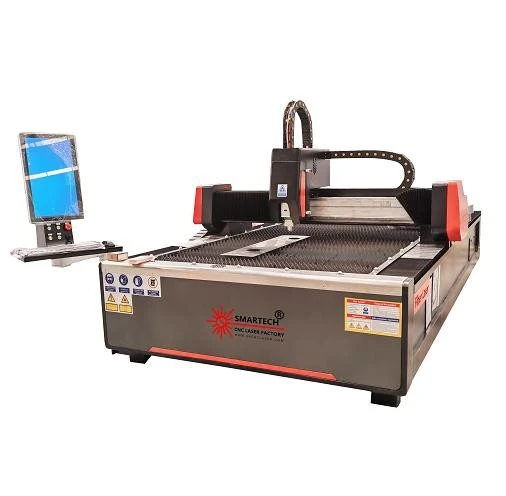

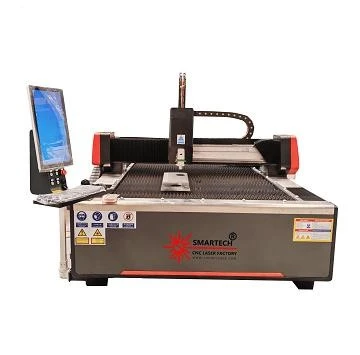

Industrial-Grade Fiber Laser Sheet Cutting Machine For Metal Fabrication

Main Configurations:

Model: SFT2060-R

#Working area:6000x2000mm

#Rotary device for pipes cutting chuck 220mm*6000mm

#Laser Source:- Max- 6000W

#Head- RayTools Autofocus BM110 BM06K

#Japan-Servo-yasakawa 1300W

#Controller- cypcut 4000C

#Height controller-BCS100 V3.0

#Reducer--Wanxin-From Taiwan

#Rack- YYC

#Rails - Taiwan PMI

#Germany ball screw transmission

#Support DXF,DXP,NC,G,etc

#Water chiller -Hanli

#Annealing , anti vibration heavy bed.

#Chuck size:220mm

#Cyp tube software

#exchange table

Language Selection

The touch screen supports multi-language switching, and the factory default setting is the customer-specified language

Oiling machine

The core function is to ensure that mechanical parts are fully lubricated during operation, reduce friction loss and extend equipment life.

Servo motor with reducer

Used to increase output torque, reduce speed or match load inertia.
1. Increase torque: The reducer sacrifices speed in exchange for higher torque, which is suitable for heavy load occasions.
2. Speed ​​matching: Reduce the high speed of the servo motor (usually 3000-6000 RPM) to the low speed required by the load.
3. Inertia matching: Reduce the impact of load inertia on the motor and improve the system response speed and stability.

Cutting Head

1.Highly dustproof.The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens
contamination is almost zero.

2.Motion picture zero focus The scale can be adjusted flexibly to unify the zero focus position andno longer worry about adjusting the process parameters.

3.Efficient water cooling The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.

4.Optimized structural design Integrated body
design, improved QBH optical fiber interface no longer stuck due to water leakage, rust and other reasons.

fuji servo with reducer Add shell protection

Used to protect equipment from mechanical damage or contamination
