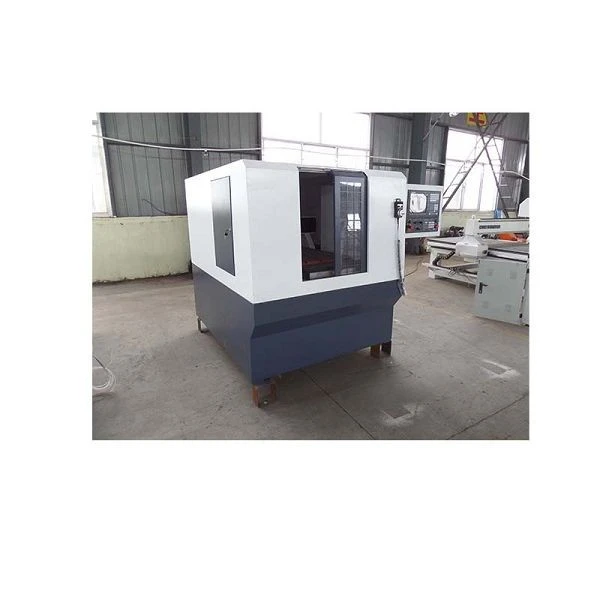

ATC CNC Moulding Machine 0606



1.Cast Iron Machine body

2. Working area 600* 600*300mm

3. Imported Taiwan TBI ball screw transmission for x,y,z axis

4. High Precision Taiwan PMI imported 25mm Square Guide Rail

5. Heavy cast iron bed

6. Movable cast iron working table with water tank

7. Syntec 6MA control system

8. Servo motor driver

9. ATC constant spindle

10. Best inverter

11. JD paint or Artcam software

12. 10 pcs working tools

13. One complete set of maintain tools

14. Plywood case

15. Tool kits with water pump,collets,clamps,spanner etc

16. Lubrication system

17.Tool sensor

18.Tool box

ATC CNC Moulding Machine 0606 – Precision Engraving & Milling



The ATC CNC Moulding Machine 0606 is a compact, high-precision CNC machine with an Automatic Tool Changer (ATC), designed for engraving, mould making, and precision milling of metals, plastics, and composite materials. With a 600mm x 600mm (24"x24") work area, it's ideal for jewelry, small molds, aerospace components, and industrial engraving.



🔹 Key Features

1. Automatic Tool Changer (ATC)



6–12 tool capacity (quick swaps for drilling, engraving, milling).

Reduces manual intervention – Faster production with multi-tool jobs.

2. High-Precision Machining



±0.02mm accuracy (ideal for fine details in molds & jewelry).

Linear guides & ball screws – Smooth, vibration-free operation.

3. Spindle Options



1.5kW–4.5kW water-cooled spindle (for steel, aluminum, brass).

60,000 RPM high-speed spindle (for ultra-fine engraving).

4. Material Compatibility



✔ Metals – Aluminum, brass, copper, soft steel.
✔ Mold Materials – Graphite, tool steel, wax (for lost-wax casting).
✔ Plastics & Composites – Acrylic, PCB, carbon fiber.

5. CNC Control & Software



Syntec, Mach4, or Siemens controller (user-friendly interface).

Works with ArtCAM, Fusion 360, Type3, Mastercam.

6. Worktable Options



Vacuum table – For thin sheets (metal, plastic).

T-slot clamping – For molds, blocks, and irregular parts.



🔹 Applications

✔ Jewelry Making – Engraving rings, pendants, watch parts.

✔ Mold & Die Production – Injection molds, stamping dies.

✔ Aerospace & Medical Parts – Precision micro-machining.

✔ Industrial Engraving – Serial numbers, barcodes, logos.

✔ PCB Prototyping – Circuit board milling & drilling.



CNC Molding Machine Applications

CNC molding machines are widely used for engraving, milling, cutting and drilling of most materials, including copper, aluminum, steel, iron, foam and plastic. Widely used in injection molds, automobile molds, hardware molds, shoe molds, drip molds, hardware molds, watch parts, copper electrodes, zinc electrodes, metal electrodes, metal crafts, metal crafts, jewelry and jade, dental crowns and other mold forming industries.







Machine tool box
